Geology Storage Cabinets

Rocks and earth tell the story of our planet across time.
Those minerals are precious, and deserve to be preserved.

Geology storage cabinets



Rocks, gems, fossils, and other precious artifacts from Earth tell our planet's story across time. These incredible specimens provide insight, knowledge, and tidbits of our planet’s history, from its greatest successes to its monumental failures.

From the tiniest crystals to the heaviest rocks, these precious artifacts deserve to be preserved in a high-quality, safe environment where they will be protected from the elements of nature and the accidents of humankind.



NPS/Geology
Zoology Museum Storage Cabinet
Zoology Museum Storage Cabinet

Safely Store Specimens

Our geology storage cabinets have been designed purposely to preserve all sizes, shapes, and types of geology and paleontology specimens. Our mechanically attached silicone gaskets combined with our flush locking hardware will protect your samples from light, dust, water, insects, rodents, and accidental disturbances from individuals in the office. You can rest assured that your specimens will be kept safe and secure.

Features and Specifications Comparison

We offer three cabinet designs to provide you with precisely what you need for your line of work or hobby. Whether you are a professional scientist needing to protect your specimens or you are an avid collector, these three top-of-the-line cabinets will provide your artifacts with a safe home.

NPS/Geology Downloads


These cabinets are certified for National Parks Service

Model DDL

Features:

  • Cabinets are all steel and include heavy-duty construction
  • Non-reactive solvent-free baked powder coat finish
  • Mechanically attached silicone gaskets
  • Flush locking hardware
  • Lift off hinge doors
  • Tray and tray glides to be finished with slip-type powder coat for tray slide ease.
  • Stacking rims and sanitary bases are available upon request

Specs:

  • Cabinet Dimension: 29” wide x 36-7/8” high x 32” deep
  • Cabinet Weight: 169 lbs.
  • Cabinet top, bottom, back, sides, and door are constructed with .036" (20ga.) steel. Reinforcing channels and tray glides are constructed with .060" (16ga.) steel
  • Tray Capacity: 16 Model DDL Trays; 1-3/4” high (Additional heights available)
  • Tray Interior Dimensions: 23-1/4” wide x 1-5/8” high x 28-1/2” deep
  • Tray Weight: 12 lbs.
  • Trays constructed of .036” (20ga.) steel
  • Tray to have two pull handles and label holder
  • Turn tray heights available

Model DDLC

Features:

  • Cabinets are all steel and include heavy-duty construction
  • Non-reactive solvent-free baked powder coat finish
  • Mechanically attached silicone gaskets
  • Flush locking hardware
  • Lift off hinge doors
  • Tray and tray glides to be finished with slip-type powder coat for tray slide ease.
  • Stacking rims and sanitary bases are available upon request.

Specs:

  • Cabinet Dimension: 58” wide x 36-7/8” high x 32” deep
  • Cabinet Weight: 229 lbs.
  • Cabinet top, bottom, back, sides, and door are constructed with .036" (20ga.) steel. Reinforcing channels and tray glides are constructed with .060" (16ga.) steel
  • Tray Capacity: 16 Model DDLC Trays; 1-3/4” high (Additional heights available)
  • Tray Interior Dimensions: 52-1/4” x 1-5/8” high x 28-1/2” deep
  • Tray Weight: 24 lbs.
  • Trays constructed of .036” (20ga.) steel
  • Tray to have two pull handles and label holder
  • Turn tray heights available

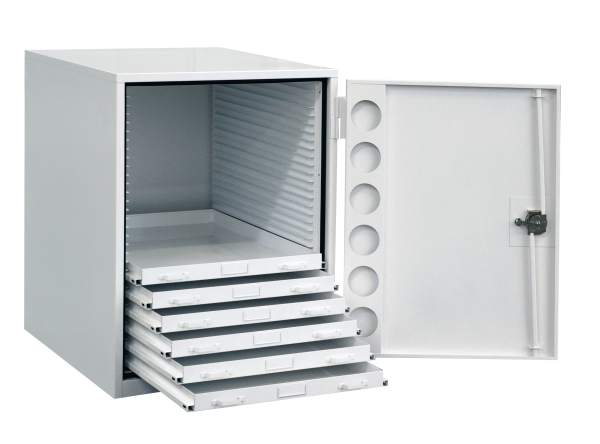

DDLOpen_DSC5552_cmyk-e1495548606688

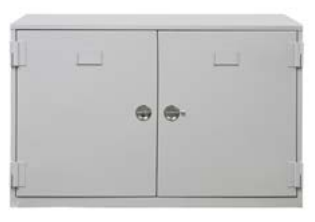

Screenshot 2021-02-23 131816

Series 800

SERIES 800

Features:

  • Easily fixed to mobile compact storage
  • Cabinets are all steel and include heavy-duty construction
  • Non-reactive, solvent-free, baked powder-coat finish
  • Mechanically attached silicone gaskets
  • Flush-locking hardware
  • Three-point latch system
  • Full-length piano hinge door or lift-off hinge door(s)
  • Cabinet contains glides fixed on 1” centers vertically
  • Trays and tray gliders to be finished with slip-type powder-coat for tray-slide ease
  • Glides are .060” (16 ga.)
  • Umbrella top
  • Easy to stack
  • Case allows installation of center partitions for half-width trays

Specs:

  • Cabinet Dimension: 24” to 72” wide x 48” to 96” high x 24” to 36” deep (Interior accessories will be priced separately.)

Options:

  • Center divider to accommodate half-width trays
  • 1-3/4” high or 3-3/4” high trays (other tray heights available)
  • Number strip for re-inserting tray base
  • Gravity stops for trays
  • Mobile carriage/base access panels
  • Base options: 4” to 8” high pallet-style base
  • 2” to 6” high platform base
  • 6” to 8” high caster base

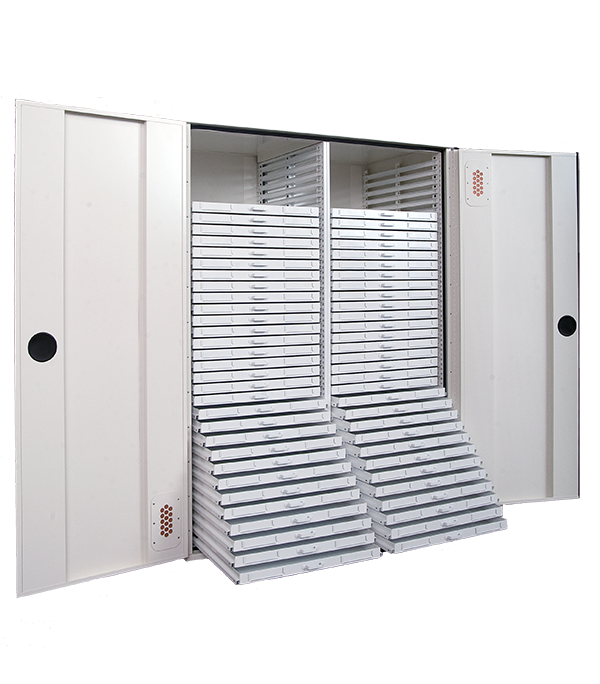

CantileverRack_DSC_5348-1

Talk to an expert

Our geology storage cabinets are customized to meet your specific needs and conditions. Leveraging our in-depth experience in storage, we provide expert guidance to help you select the ideal solution for your project. Our team of specialists is ready to support you!
